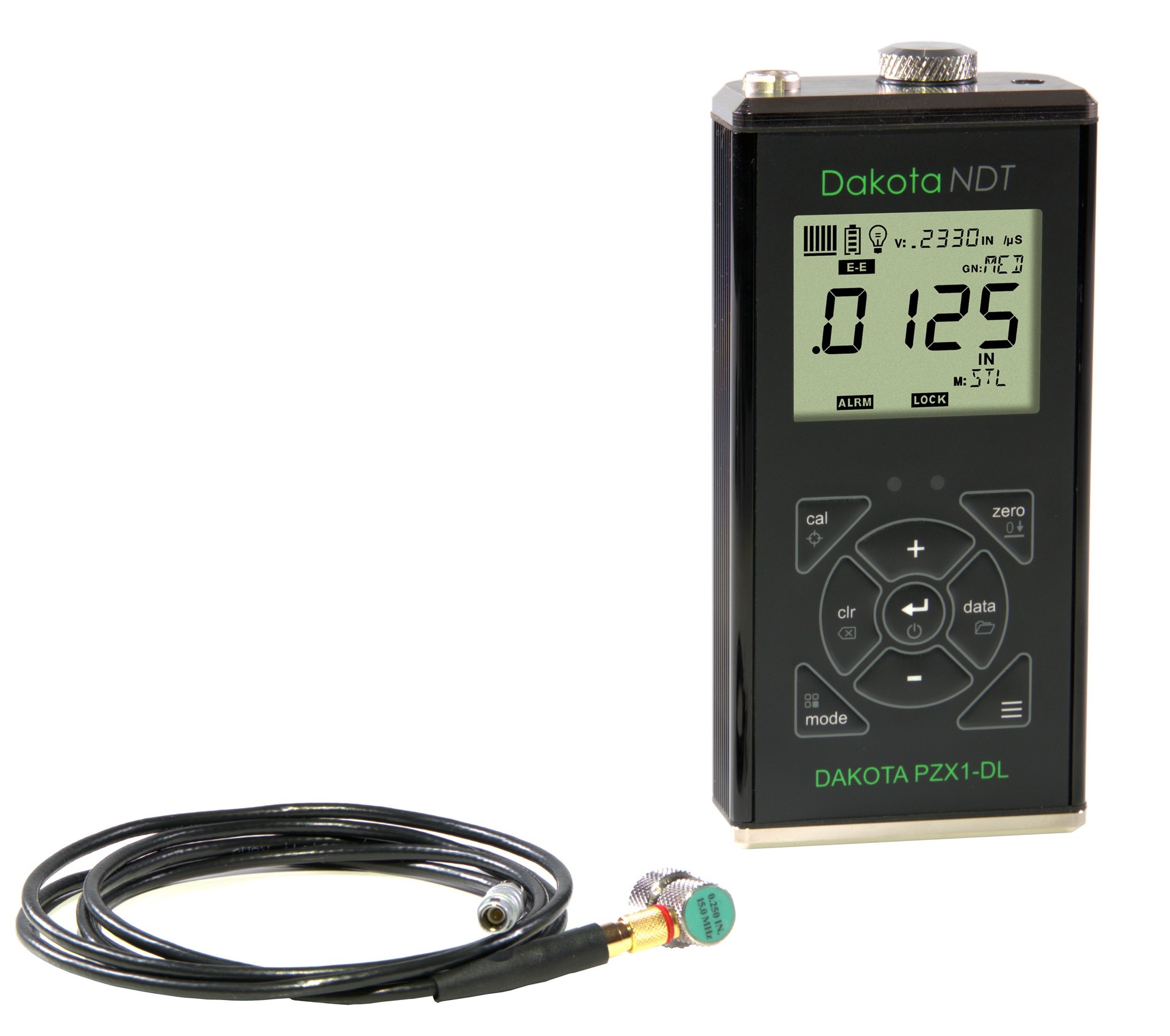

Dakota PZX1-DL Precision Ultrasonic Thickness Gauge

pzx1dl
our price £1,860.00 ex. VAT
£2,232.00 inc. VAT

The PZX1-DL can perform extremely precise high resolution measurements on thin walled materials (range 0.15 – 25.4mm). It is housed in a robust aluminium sealed case and has the following advanced features :

  • Large backlit LCD display with 0.001mm resolution
  • Scan mode (scan area for minimum thickness)
  • Alarm mode (audible & visual)
  • Differential mode (+/- from nominal thickness value)
  • Echo-Echo mode for through paint and thin material applications
  • Automatically switches to Interface-Echo mode when measuring thicker materials
  • Alarm mode (set hi and lo limits)
  • Data storage capacity for 1,000 readings

Supplied as a complete kit including delay line probe, batteries, bottle of couplant, instruction manual, foam lined carrying case, software & calibration certificate.

Buy the Dakota PZX1-DL Precision Ultrasonic Thickness Gauge

Option
Price
