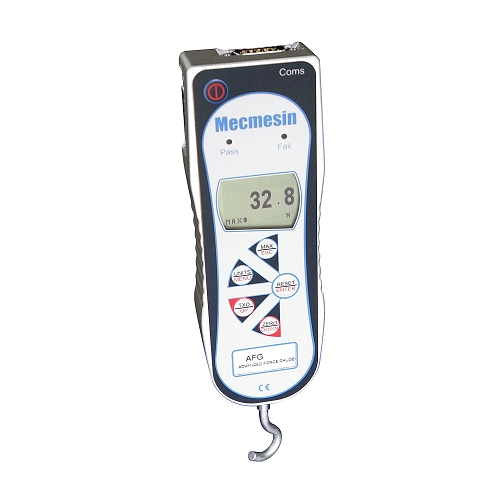

Mecmesin Advanced Force Gauge (AFG)

/images/product/Mecmesin Advanced Force Gauge (AFG)
from £1,230.00 ex. VAT
£1,476.00 inc. VAT

The Mecmesin Advanced Force Gauge (AFG) is the most versatile and fully-featured digital force gauge on the market. It can be used hand-held or fixed to a manual or motorised test stand to allow testing under controlled speed conditions. The AFG is fitted with a high-precision “internal” loadcell accurate to ±0.1% of full scale.

The AFG offers enhanced test options including:-

View 1st peak & ultimate max readings

Audible and visual pass/fail alarms

Store up to 500 readings in the memory

Reversible display

  • Excellent accuracy ±0.1% of full-scale
  • N, kN, mN, gf, kgf, lbf and ozf measurement units
  • RS232, digimatic and analogue
  • Overload warning, with trend bar
  • Data acquisition software for additional test evaluation options
  • 10 models, 2.5N to 2500 N (0.55lbf to 550 lbf)

Standard delivery includes:-

  • Calibration certificate
  • Compression plate
  • Test hook
  • Extension rods
  • Rechargeable batteries (NiMH)
  • Mains adapter / battery charger
  • Rugged carry case

For added flexibility the AFG is able to recognise data from our range of external 'plug and play' force or torque transducers.

The AFG can be used with a wide range of Mecmesin grips and accessories.
