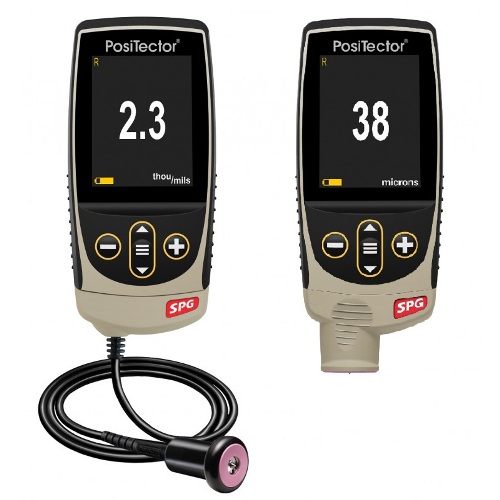

DeFelsko PosiTector SPG surface profile gauge

/images/product/DeFelsko PosiTector SPG surface profile gauge

Surface Profile Gages for Blasted Steel, Textured Coatings, and Concrete Profile
Surface Profile Gages use a digital depth micrometer to measure and record peak to valley surface profile heights in preparation for the application of coatings

Features

  • Alumina wear face and tungsten carbide tip for long life and continuous accuracy—field replaceable tips
  • Glass Zero Plate and metal check shim included
  • 30º angle interchangeable probe tip available for special surface profile applications
  • Statistics mode continually displays/updates average, standard deviation, min/max, and number of readings while measuring
  • Screen Capture—save 100 screen images for record keeping and review
  • HiLo alarm audibly and visibly alerts when measurements exceed user-specified limits
  • USB, WiFi, and Bluetooth connectivity to PosiSoft PC, Mac, and Smartphone software
  • Every measurement is date and time stamped
  • Weatherproof, dustproof, and water-resistant—IP65-rated enclosure
  • PosiTector interchangeable platform—attach any PosiTector probe to gage body
  • Certificate of Calibration and Two (2) year warranty

Conforms to ASTM D4417-B, ASTM D8271 (SPG TS only), AS 3894.5-C (with optional 30° tip), U.S. Navy NAVSEA NSI 009-32, US Navy NAVSEA PPI 63101-000, SSPC PA 17, SANS 5772, and others

Standard Models (1)
Includes ALL features as shown above plus...

  • Storage of 1,000 readings per probe—stored readings can be viewed or downloaded

Advanced Models (3)
Includes ALL features as shown above plus...

  • Storage of 250,000 readings in up to 1,000 batches and sub-batches
  • SmartBatch™ allows entry of user-defined parameters and criteria to for quick statistical analysis comply with standards such as ASTM D4417 and SSPC PA-17
  • Live graphing of measurement data
  • Touchscreen keyboard for quickly renaming batches, adding notes, and more
  • WiFi technology wirelessly synchronizes with PosiSoft.net and downloads software updates
  • Bluetooth 4.0 Technology for data transfer to a mobile device running the PosiTector App or optional portable printer. BLE API available for integration into third-party software
  • Integrate with third-party software, drones, ROVs, PLCs, and robotic devices using several industry-standard communication protocols
