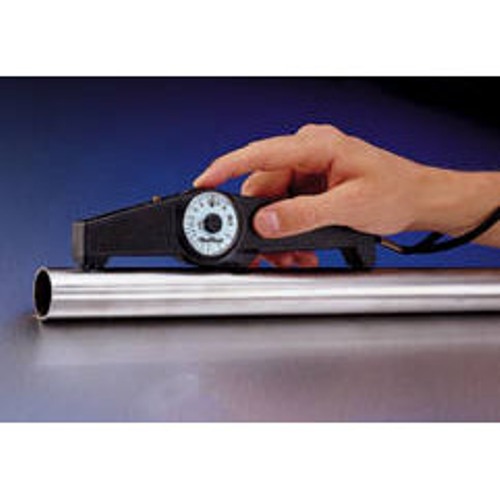

DeFelsko PosiTest F / G coating thickness gauge

/images/product/DeFelsko PosiTest F / G coating thickness gauge

PosiTest magnetic pull-off thickness gage for the non-destructive measurement of non-magnetic coatings (paint, enamel, galvanizing, metalizing, plating, etc.) on steel.

Features

  • Highly wear resistant Carbide Probe for longest life and continuous accuracy
  • Rugged housing, not affected by mechanical shock, water, acid or solvents
  • Conforms to national and international standards
  • Remove centre of dial cover for easy calibration adjustment
  • No batteries/electronics
  • Certificate of Calibration included with every gauge
  • 2 year warranty

PosiTest F :

  • Applications: Paint, enamel, plastic coatings, galvanizing, chrome on steel
  • Scale: 0-2000 µm
  • Tolerance: +/- 5 µm up to 100 µm; +/-5% of reading over 100 µm

PosiTest G :

  • Applications: Thin pain films, electroplating and phosphating on steel
  • Scale: 0-200 µm
  • Tolerance: +/- 1 µm up to 20 µm; +/-5% of the reading over 20 µm
